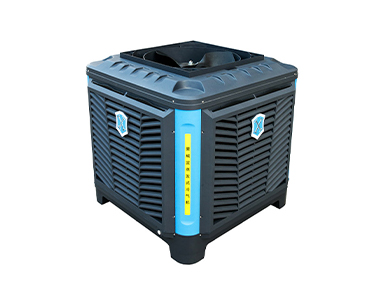

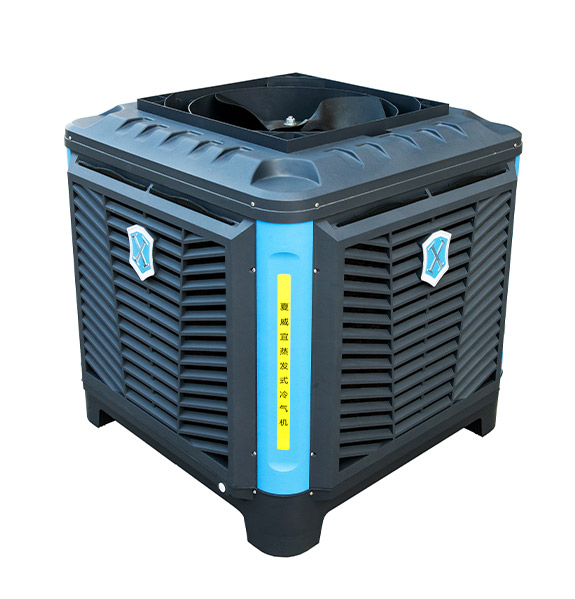

Axial Flow Type

Industrail Cooler

Axial Flow Type

Environmentally friendly air conditioners are also called water-cooled fans, water air conditioners

Cooling principle: The evaporation of water will take away a large amount of latent heat to achieve natural evaporation cooling. It is currently the most internationally recognized technology with the highest refrigeration efficiency. It has been certified by the national third-party authoritative certification agency (National Compressor Refrigeration Equipment Quality Inspection Center) with a single unit of 1.1kw. The cooling capacity of Xiaviyi environmentally friendly air conditioners reaches 24.822kw, which is equivalent to the national standard cooling capacity of 10P traditional air conditioners, and the energy efficiency ratio is 21.75kw/kw, an ultra-high efficiency.

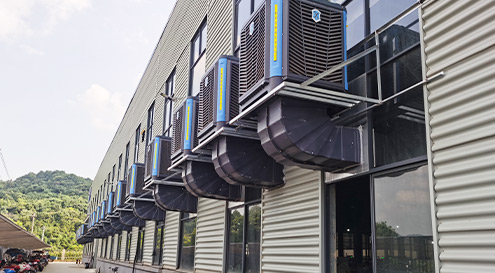

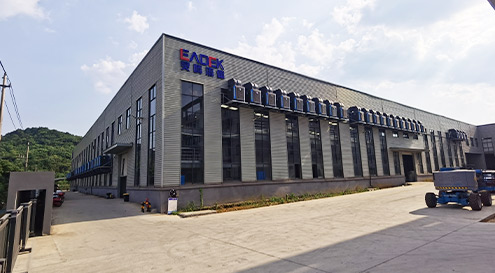

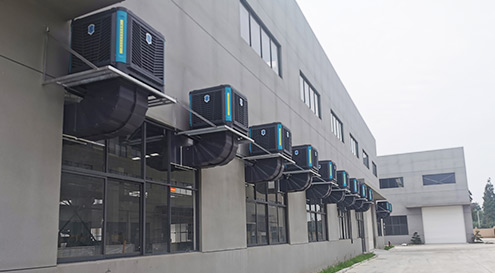

Application scenarios: This model is mainly suitable for industrial workshops, commercial places, agricultural breeding and other places that require ventilation, cooling or humidification. The cooling method can be overall cooling, partial cooling, and fixed-point cooling for pipeline posts within 30 meters.

Product advantages: 5090 odorless and high-efficiency evaporation water curtain, with high assembly precision, reduces air leakage rate by 10%-20%, and can reduce 1-2 degrees Celsius more than the same period last year. New PP modified engineering materials, adding anti-aging and anti-UV masterbatch, improve Weather resistance and service life, high-efficiency motor and fan blades, more energy-saving, larger air volume, and longer air supply distance.

Customer Service

+86 181-5957-1206

Connect
Specifications

XWY-KT-20K

XWY-KT-25K

XWY-KT-30K

XWY-KT-40K

Model

Dimensions

Air outlet size

Air outlet method

Air volume

Power

VoltageWeight

Water curtain size

Volume

Refrigeration capacity

Shell material

(MM)(MM)
(M³/H)(KW)(V)

(Kg)

(MM)(L) (kW)
XWY-KT-20K1140x1140×1100670X670up/side/down200001.1220/38072720×775×100
3624.82PP new modified
Model

Dimensions

Air outlet size

Air outlet method

Air volume

Power

VoltageWeight

Water curtain size

Volume

Refrigeration capacity

Shell material

(MM)(MM)
(M³/H)(KW)(V)

(Kg)

(MM)(L) (kW)
XWY-KT-25K1140x1140×1358670X670up/side/down250001.5220/38082970×775×1003630.43PP new modified
Model

Dimensions

Air outlet size

Air outlet method

Air volume

Power

VoltageWeight

Water curtain size

Volume

Refrigeration capacity

Shell material

(MM)(MM)
(M³/H)(KW)(V)

(Kg)

(MM)(L) (kW)
XWY-KT-30K1350×1350×1260800×800up/side/down300003.0380V/50HZ172882×985×1007037.2Stainless steel
Model

Dimensions

Air outlet size

Air outlet method

Air volume

Power

VoltageWeight

Water curtain size

Volume

Refrigeration capacity

Shell material

(MM)(MM)
(M³/H)(KW)(V)

(Kg)

(MM)(L) (kW)
XWY-KT-40K1350×1350×1260800×800up/side/down400003.0380V/50HZ176882×985×1007049.6Stainless steel
Core components

Core Power Components

Shell Body Technology

High Efficiency Evaporator

Intelligent Control Technology

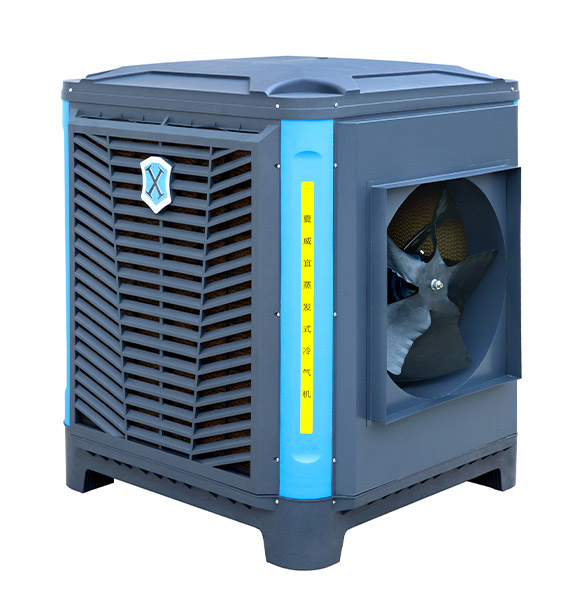

Core Power Components

It adopts cast iron/cast aluminum fully enclosed pure copper brand motor, IP55 protection level, waterproof and moisture-proof, and F-class insulation level protection to ensure that the temperature rise of the motor remains stable under uninterrupted and continuous working conditions. The motor can be adjusted by stepless frequency conversion (220V/380V) to meet the needs of more working conditions.

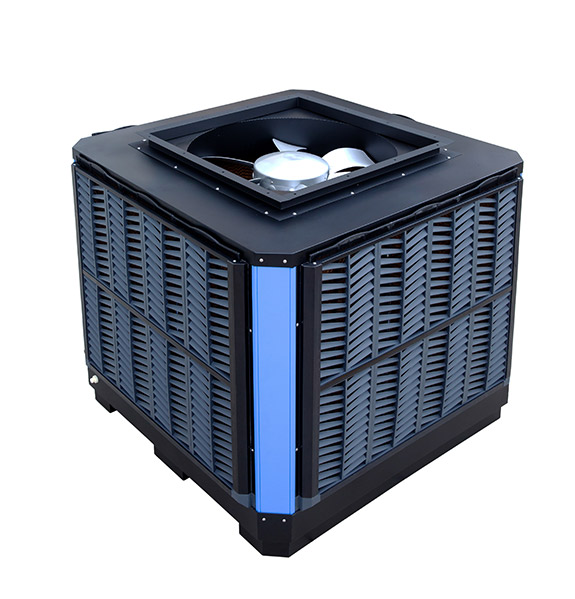

Shell Body Technology

The entire fuselage shell is injection molded with high-strength weather-resistant engineering new materials. It has the characteristics of anti-ultraviolet, anti-aging, anti-deformation, anti-corrosion, and long service life. It has high assembly precision and can reduce the air leakage rate by 10%-20%. It can be achieved year-on-year. It can reduce the temperature by 1-2 degrees Celsius more and is equipped with a dust-proof filter plug-in template. The evaporative wet curtain has a full-edge frame with a black and blue color scheme, making the equipment more high-end. After installation, the overall image and effect are more beautiful and more consistent. High-end enterprises have high-quality requirements for the overall image. Tensile strength 24mpa Bending strength 31mpa Compressive strength 322mpa Elongation at break 61% Density 0.901g/cm³ Izod notched impact strength 13 kj/m² Shore hardness 68shore D Compressive strength 33.4mpa

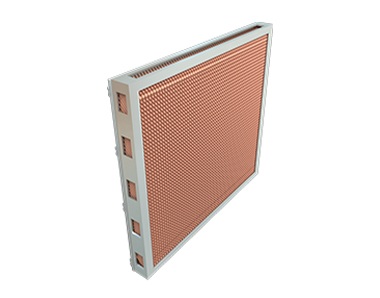

High Efficiency Evaporator

Xiaviyi environmentally friendly air conditioning evaporative wet curtains are made of high-quality base paper materials. Type 5090 has the characteristics of fine density, good water absorption, high wet stiffness, low shrinkage, no mildew and long service life. During the working process, it has the advantages of large evaporation area, evaporation rate of more than 90%, high cooling efficiency and small pressure loss. It can also effectively remove dust particles in the air. The removal efficiency for PM10 can reach more than 90%, and for PM2 The removal efficiency of .5 is above 40%.

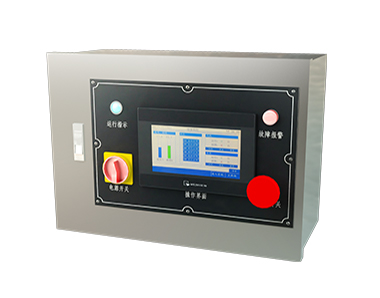

Intelligent Control Technology

Centralized Control Technology:
1. Intelligent centralized control function and cluster control realize an intelligent centralized control system for 60 devices in one zone. The authorized person can enter the management system with a password, which greatly facilitates the improvement of daily management efficiency and saves labor costs. It solves the problems of low efficiency of on-site manual control and waste of energy caused by manual control. It is safer to control strong and weak electricity separately, and the operation status of the equipment is clear at a glance.
2. Automatically switch on and off at scheduled times, and can be freely set to automatically switch on and off 24 hours a week.
3. Temperature and humidity sensing function, setting and displaying indoor temperature and humidity values, realizing automatic control of refrigeration and ventilation functions.
4. Automatic fault diagnosis function and full-screen display of equipment operating mode to achieve rapid diagnosis and troubleshooting functions.
5. Centralized water circulation function: Utilize the intelligent group control system to design a centralized water supply system to achieve a centralized water supply cycle, regular descaling, reduce failure rates, greatly reduce maintenance workload, and maintain the best cooling effect.
Single Control Technology:
1. Automatically switch on and off at scheduled times, and automatically switch on and off at freely set times.
2. Far-infrared remote control function and long-distance remote control can realize on/off, refrigeration, ventilation, speed adjustment, cleaning and drainage.
3. The air volume is adjustable, intelligent and precise control of the air volume, achieving twelve-speed wind speed control, forward air supply and reverse air exhaust, making one machine multi-purpose.
4. The functions of pre-cooling and cleaning on startup, ventilation and air drying on shutdown realize air-drying wet curtains and maintain indoor temperature and humidity balance.
5. It is equipped with a water shortage protection function for the water pump to ensure effective protection of the water pump under water shortage conditions; to prevent the water pump from dry burning and even causing fire accidents.
6. Automatic cleaning function, freely set for 1-99 hours, which can effectively remove dirt from the water tank and extend the life of the equipment.

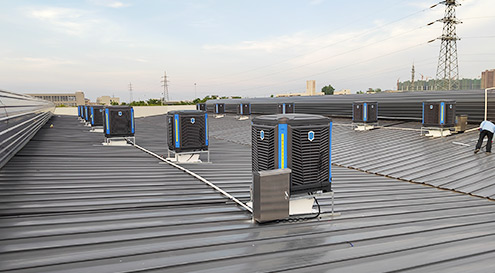

Applications
