Home >> Industrial Air Cooler >>

Mobile Air Conditioning





Industrial Air Cooler

Mobile Air Conditioning

Mobile environmentally friendly air conditioners are also known as: mobile water air conditioners, mobile air coolers, and mobile air conditioner fans.

Cooling principle: water evaporates and absorbs heat. According to this principle, when water flows downward from the upper part of the wet curtain under the action of gravity, a water film will be formed on the surface of the corrugated fiber material; when the flowing air passes through the wet curtain, the water in the water film will absorb the heat in the air. Evaporate, thereby taking away a large amount of latent heat, reducing the temperature of the air passing through the wet curtain, achieving cooling, cooling and humidification purposes;

Product Features:

1. The entire fuselage shell is made of high-strength weather-resistant engineering new materials and is injection molded in one piece. It is non-corrosive, durable and beautiful.

2. With remote control, 3 speeds can be adjusted, with electric wind swing, which can swing left and right up and down, and the radiation applicable area is larger.

3. No installation required, just plug in and fill with water. It can quickly solve the problem of stuffiness and heat. It can be used in any place. It comes with universal wheels and can be moved at will.

4. The new wet curtain paper saves electricity and is environmentally friendly. It has obvious cooling effect and increases humidity.

5. Microcomputer program, clear and luxurious LCD panel.

Customer Service

+86 181-5957-1206

Connect
Specifications

XWY-KT-20KY

XWY-230Y

XWY-180Y

XWY-120Y

XWY-060Y

Model

Dimensions

Air outlet size

Air volume

Power

VoltageWeightWater curtain sizeWater tank volumeRefrigeration capacity

Shell material


(MM)(MM)(M³/H)(KW)(V)(Kg)(MM)(L)(KW)
XWY-KT-20KY1140x1140x2050670×67020000 1.1220V/380V86720×775×10030024.82PP new modified
Model

Dimensions

Air outlet size

Air volume

Power

VoltageWind noiseWater storage capacity

Distance of air supply


(MM)(MM)(M³/H)(KW)(V)(DB)(L)(M)
XWY-230Y1710x670x1120760×76022000 1.12207017612
Model

Dimensions

Air outlet size

Air volume

Power

VoltageWind noiseWater storage capacity

Distance of air supply


(MM)(MM)(M³/H)(KW)(V)(DB)(L)(M)
XWY-180Y1710x670x1120760×76018000 0.752206817610
Model

Dimensions

Air outlet size

Air volume

Power

VoltageWind noiseWater storage capacity

Distance of air supply


(MM)(MM)(M³/H)(KW)(V)(DB)(L)(M)
XWY-120Y1400x580x920650×63012000 0.4522060928
Model

Dimensions

Air outlet size

Air volume

Power

VoltageWind noiseWater storage capacity

Distance of air supply


(MM)(MM)(M³/H)(KW)(V)(DB)(L)(M)
XWY-060Y1400x500x860560X5406000 0.2922058766
Core components

Core Power Components

Shell Body Technology

High Efficiency Evaporator

Extra Large Water Tank

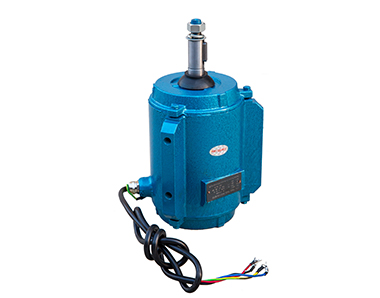

Core Power Components

It adopts cast iron/cast aluminum fully enclosed pure copper brand motor, IP55 protection level, waterproof and moisture-proof, and F-class insulation level protection to ensure that the temperature rise of the motor remains stable under uninterrupted and continuous working conditions. The motor can be adjusted with three-speed frequency conversion to meet the needs of more working conditions.


Shell Body Technology

The entire fuselage shell is made of high-strength weather-resistant engineering new materials and is injection-molded by large-scale injection molding equipment in one go. It does not require assembly, does not rust or corrode, is strong, durable, and beautiful.

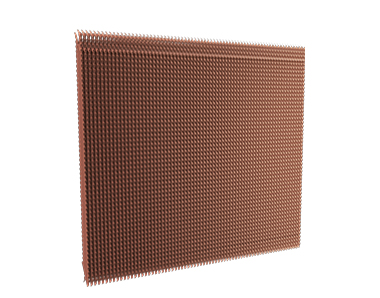

High Efficiency Evaporator

Xiaviyi environmentally friendly air conditioning evaporative wet curtains are made of high-quality base paper materials. Type 5090 has the characteristics of fine density, good water absorption, high wet stiffness, low shrinkage, no mildew and long service life. During the working process, it has the advantages of large evaporation area, evaporation rate of more than 90%, high cooling efficiency and small pressure loss. It can also effectively remove dust particles in the air. The removal efficiency for PM10 can reach more than 90%, and for PM2 The removal efficiency of .5 is above 40%.

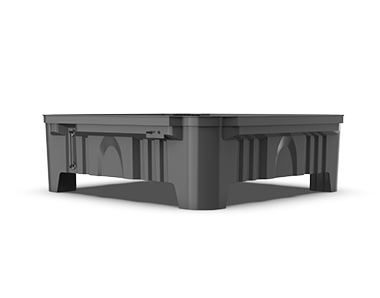

Extra Large Water Tank

The water tank is made of one-piece injection molding and will not rust, corrode or leak. The 300L ultra-large capacity design ensures that it can be used for more than 4 hours with a single addition of water under environmental conditions without automatic water refilling, allowing a continuous flow of air conditioning and eliminating the trouble of frequent refilling of water. .
