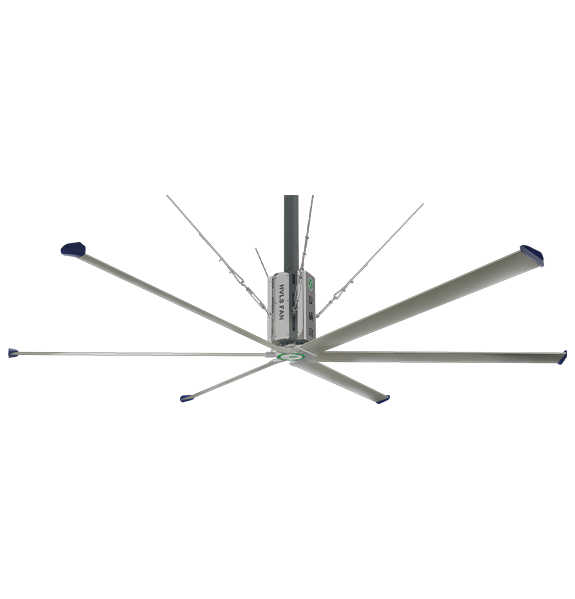

HVLS is a low speed, large air volume, large diameter energy-saving ceiling fan

Cooling principle: A large air volume ceiling fan allows the air to flow throughout the cooling area. The flowing air flow allows the sweat on the skin surface of the area staff to evaporate and take away the heat on the skin surface, thereby achieving cooling of the human body or animals. The body temperature of the human body is reduced by 2-3, which increases comfort.

Application scenarios: This model is mainly suitable for ventilation in industrial workshops, commercial places, and agricultural breeding places. It adopts ceiling-mounted installation. Depending on the length of the fan blades of different models, the reasonable applicable installation height is usually between 5-12 meters.

Product features: The hoisting type does not occupy on-site space, is energy-saving and environmentally friendly, and covers a large area (for example, the diameter is 7.3 meters and the effective area is 800 square meters). The air volume is soft and natural wind. When combined with environmentally friendly air conditioners, it can achieve small temperature differences in the overall area and fast cooling speed.

Customer Service

+86 181-5957-1206

Connect
Specifications

XWY-HVLS-61JS

XWY-HVLS-73JS

Model

Diameter

Air volume

Power

Voltage

Maximum speed

Wind noise

Application area

Optimal installation height


(MM)(M³/MIN)(KW)(V)(R/MIN)(DB) (㎡)(M)
XWY-HVLS-61JS6100≥138001.5220/ 38060≤487506-9
Model

Diameter

Air volume

Power

Voltage

Maximum speed

Wind noise

Application area

Optimal installation height


(MM)(M³/MIN)(KW)(V)(R/MIN)(DB) (㎡)(M)
XWY-HVLS-73JS7300≥151931.5220/ 38060≤488007-10
Next product:大吊扇-永磁
Core components

Power Systems

Safety Technology

New Fan Blade

Control Technology


Power Systems

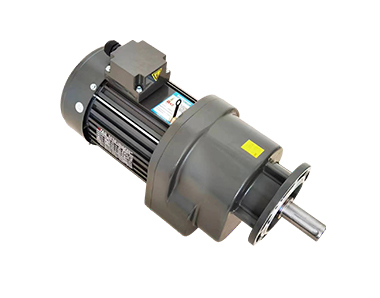

Adopting German NORD and SIEMENS integrated reduction machines, professional HVLS fan reducer brand, low backlash assembly technology/insert-type pinion shaft, lower noise, larger speed ratio, can make the efficiency greater than 96%. The four-point contact ball bearing solution is perfectly equipped with the HVLS fan. The axial load is the main axial load and the radial combined load greatly improves the bearing life. The oil seal is enlarged and 100% factory pressure tested to ensure no oil leakage. The IP55 safety factor is higher. And passed the CCC /CE /UL authoritative certification.


Safety Technology

The core of HVLS fan safety lies in the connection structure between the chassis and the fan blades. The Xiaviyi HVLS fan chassis adopts 2000T forging and new cutting technology, a round magnesium alloy chassis, and a new patented design of the connecting rod between the chassis and fan blades. It adopts a fully wrapped integral insertion method and four points. The reinforced screws are firmly fixed in place, which is more solid, stable and safe than the traditional two-point upper and lower half clamping method. It is the strongest connection method in history.


New Fan Blade

Using special high-strength aviation magnesium-aluminum alloy materials, the aerodynamic blade shape is efficient and quiet. There are 4 reinforcement systems inside the fan blade, which greatly enhances the strength and fatigue wear resistance of the fan blade and avoids blade damage caused by the long blade length. Safety issues such as end sagging and breakage.


Control Technology

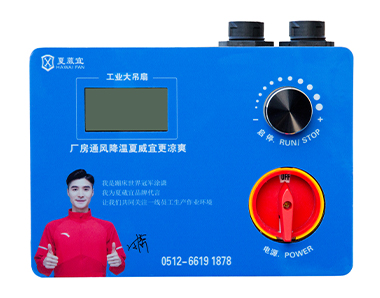

It adopts excellent electrical controller brand, VEICHI variable frequency integrated speed regulator, built-in safety protection module, and the system automatically cuts off the output in case of external force hitting the fan blade or other unexpected situations, effectively reducing the loss of personnel and property due to accidents, and passing UL , EMC, LVD, ROHS authoritative certification. Fool-like simple operation reduces the risk of personnel misoperation and reduces the technical difficulty of use.
