Deodorizing Fan

Exhaust Fans

Deodorizing Fan

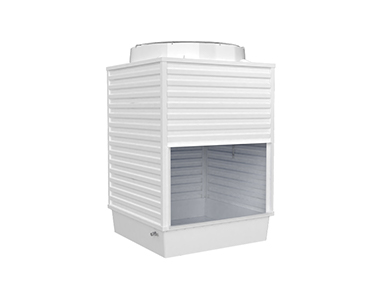

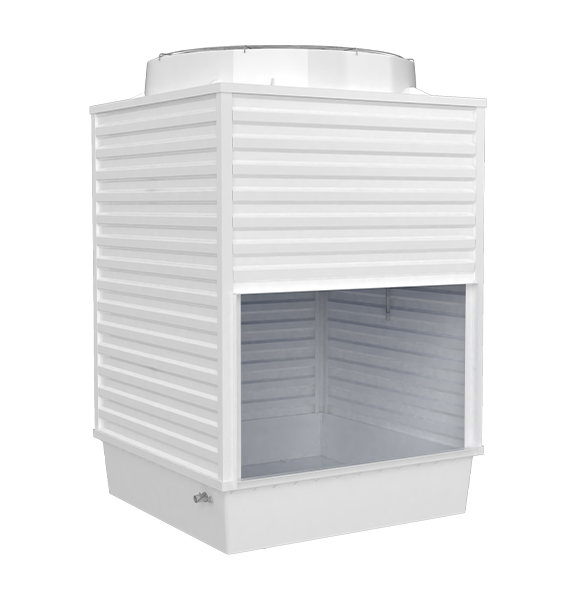

Deodorizing fan, a kind of exhaust fan that can remove bad smells and odors.

Product principle: The negative pressure fan discharges the turbid air containing a large amount of ammonia and odorous dust particles in the place, especially in agricultural breeding (pig, cattle, sheep, chicken and other animals) places, through the built-in multi-layer water curtain circulation and synthesis. , absorption, dissolution, sedimentation and other water washing processes will remove or reduce the odor concentration in the air, thereby achieving the purpose of direct emission and reducing surrounding air pollution.

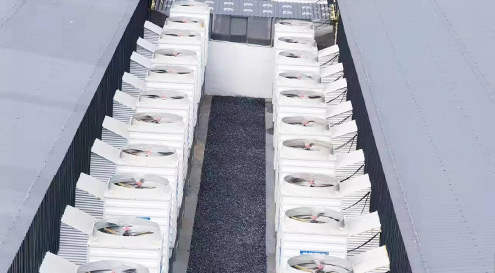

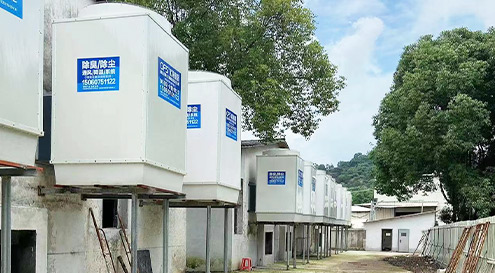

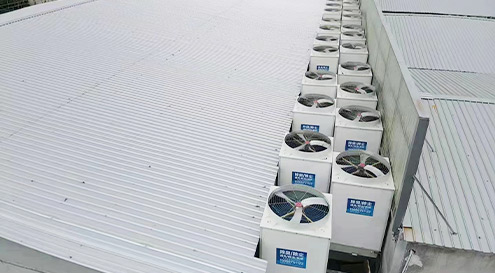

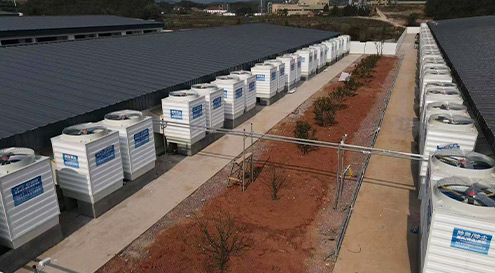

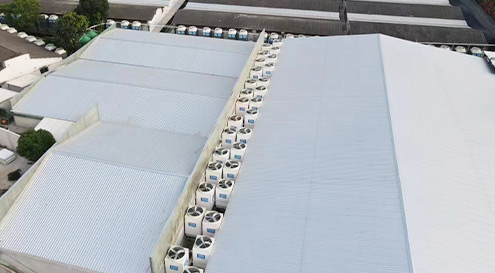

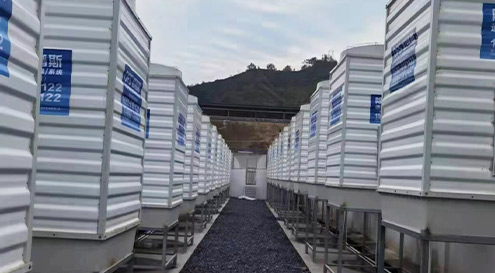

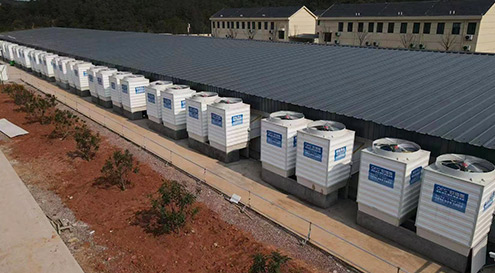

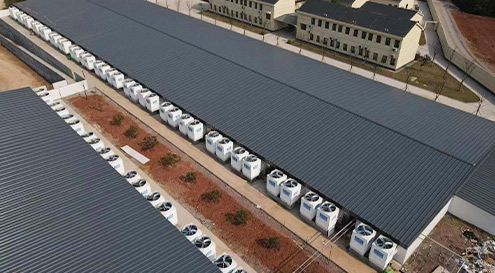

Application scenarios: This model is mainly used in agricultural breeding, pig farms, cattle farms, chicken farms and other animal breeding places to achieve ventilation and cooling without affecting the surrounding environment, reducing complaints from nearby residents about peaceful coexistence, environmental protection standards and other breeding environment issues .

Product features: This product is one of the few products on the market with high cost performance. It not only ensures the exhaust volume of the negative pressure fan, but also effectively reduces the odor. The operation and maintenance costs are relatively low, more economical, and can solve the problem. Several problems exist in breeding.

Customer Service

+86 181-5957-1206

Connect
Specifications

XWY-FJC-23KU

XWY-FJC-38KU

Model

Dimensions(MM)

Air volume(M³/H)

Impeller Diameter(MM)

Power(KW)

Voltage(V)Shell material
XWY-FJC-23KU1065×1050×2450230009001.1/0.37380V/50HZSMC Composite Material
Model

Dimensions(MM)

Air volume(M³/H)

Impeller Diameter(MM)

Power(KW)

Voltage(V)Shell material
XWY-FJC-38KU1605×1590×24503800014601.8/0.37380V/50HZSMC Composite Material
Core components

Core Power Components

Shell Body Technology

Highly Efficient Adjustable Fan Blade Technology

Highly Efficient Deodorizing Water Curtain

核心动力部件

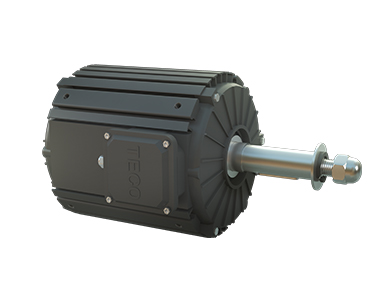

core power transmission motor

According to the uniqueness of the Xiaviyi brand negative pressure blower, the low-speed, high-torque, low-power special high-quality motor is professionally customized, which can meet the continuous and uninterrupted use in many harsh working conditions and has an extremely long service life. According to actual conditions According to the usage conditions, the normal service life of the motor is more than 10 years, the failure rate is within 1‰, ultra-low failure rate, and ultra-high cost performance.
Dustproof and waterproof grade IP55 (water washable), insulation grade (F grade), working temperature -20°≈ 60°, soft start is safer, multiple units can be started at the same time without affecting the power grid, and comes with overload and overheating protection


Shell Body Technology

Xiaweiyi pioneered the development and application of SMC composite material forging molds for large-scale negative pressure fan casings and fuselages in China. It adopts 2000T large hydraulic press one-time molding and forging technology. Its strength, density and damage resistance are all at the highest level in the industry: resin content 30.1% tensile strength 98.8mpa Bending strength 198mpa Compressive strength 322mpa Elongation at break 0.98% Density 1.86g/cm³ Simply supported beam notched impact strength kj/m² Bacol hardness 54hba

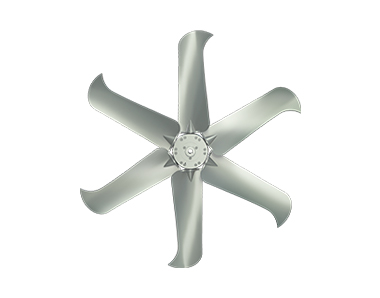

Highly Efficient Adjustable Fan Blade Technology

The fan blades are designed through professional aerodynamics to meet the characteristics of negative pressure fans with cutting pressure and wind angles, large air volume, low energy consumption, and low wind noise. The blades can be adjusted according to customer selection. Standard dynamic and static balance testing reaches (GB6075-85) good level ≤ 2.1mm/s, reducing the harm caused by vibration and resonance when the fan is running, and increasing the service life of the motor bearings.

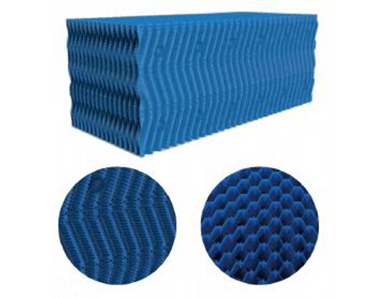

Highly Efficient Deodorizing Water Curtain

The S wave crosses the water curtain, which prolongs the time that the deodorizing agent remains in the water curtain. The ripples with resistance in the channel make the drug film more effective in removing harmful substances in the air. The honeycomb cross design and water-dividing structure are conducive to the even distribution of liquid medicine, and the overall reinforcement is achieved after AB snap-point assembly.

Applications
